Recliner & sofa gas springs for adjustable seating

Lockable gas springs for recliner chairs, reclining sofas, adjustable backrests, armrests and seating linkages, supplied with end fittings, release heads and cable controls. Compare 20 published EL1/EL2 elastic-locking references by length and stroke.

View references Send a parts list

Matching product family: Lockable gas springs & release controls →

Recliners & sofa adjustment — full furniture model with gas spring position highlighted in red

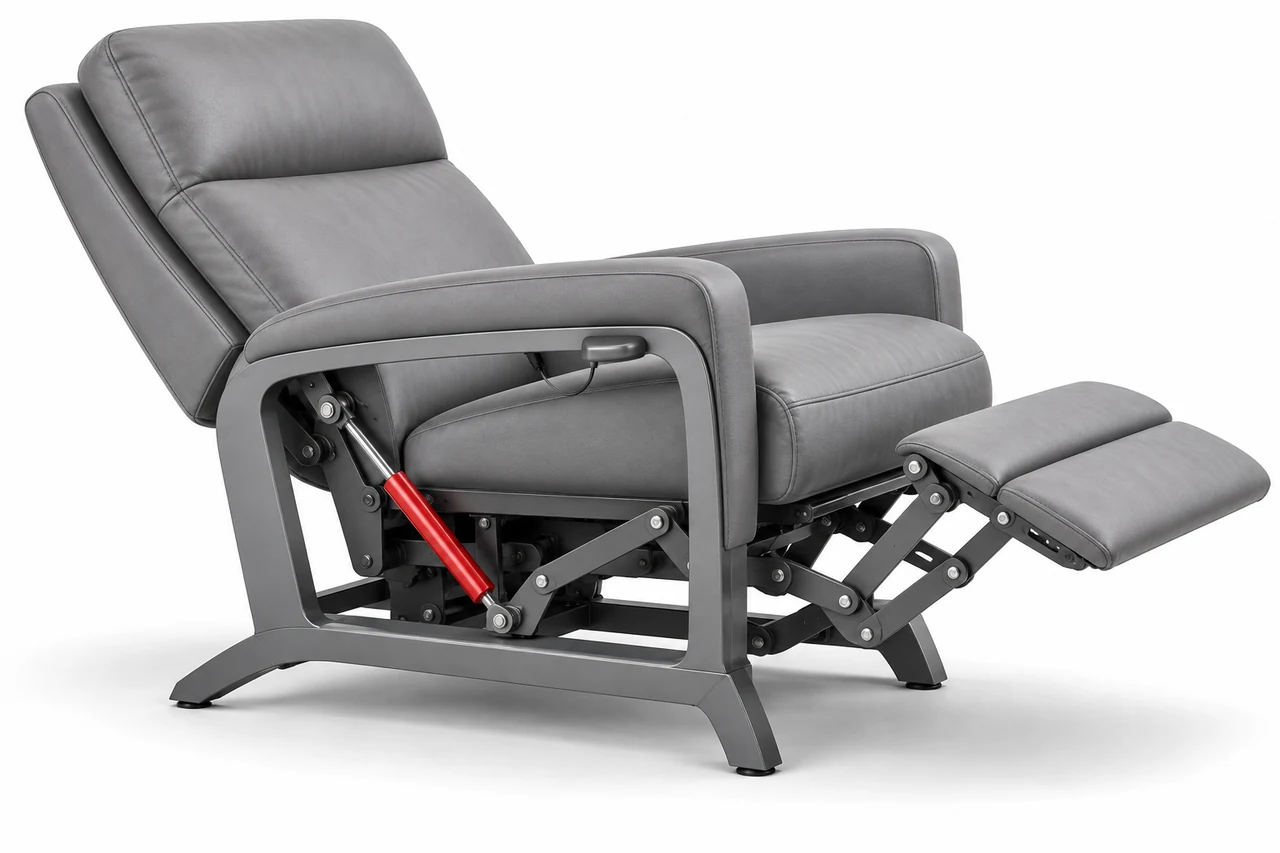

APPLICATION MODEL · Red highlights the gas spring position. Mounting layout varies by mechanism.
WHERE IT WORKS

Between the fixed seat frame and a moving backrest or adjustment linkage.

A release control allows adjustment; closing the valve holds the selected position. Elastic or rigid locking behavior must suit the seating mechanism.

Lockable gas springs & release controls →
Lockable gas spring with cable and release lever for controlled adjustment
Component options: lockable spring, release head, cable and lever. The quote identifies which parts are included in the supplied assembly.

Recliner backrests

A locking unit controls backrest positioning through the seat linkage.

Adjustable sofa sections

Headrest, armrest and backrest mechanisms have different travel and connection needs.

Release systems

Release heads, cables and levers are matched to the valve pin and required actuation. Extension force and locking load remain separate specifications.

SPECIFICATION & ORDER OPTIONS

Define the component in your quotation.

The quotation brings together the component, dimensions, connections and order quantity. An existing marking or drawing provides the starting specification; millimeters or inches are accepted.

Gas spring mounting lengths: fully extended L1, fully compressed L2 and stroke S equals L1 minus L201 / MEASUREMENTExtended and compressed lengthMOUNTING CENTER TO MOUNTING CENTERFULLY EXTENDEDL1 / Extended lengthFULLY COMPRESSEDL2 / Compressed lengthSTROKES = L1 - L2Use the same mounting references in both positions.Schematic. The short rod neck and end-fitting geometry depend on the actual assembly.
Dimension guide for a separate gas spring. Use the approved mechanism or column drawing when matching a complete assembly.
01

Locking behavior

Existing part code, elastic or rigid holding action, and adjustment position.

02

Length & travel

Extended/compressed dimensions and stroke on the relevant drawing.

03

Force & end fittings

Marked force or selected base-reference force; thread, clevis or eyelet details.

04

Release & quantity

Release-head type, cable/lever arrangement and required quantities.

These are configurable base references, not verified replacements for a named recliner brand or model. Final mounting centers depend on the selected end fittings and release head.

PUBLISHED MATCHING REFERENCES

20 references for this application.

Choose a reference and include your quantity. Keep the reference, dimensional scope and mechanism conditions with your request.

Find the reference you needChoose a filter or enter a complete part number.
20 published references

Third-party brand names and part numbers are shown for cross-reference only. Send the reference and quantity; we quote gas springs made in our own factory and confirm the dimensions and connections in your quotation.

Cross-reference: SUSPA 02752293

EL1 elastic-locking reference - 20 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 110 mm / 4.33 in
Compressed: 90 mm / 3.54 in
Stroke: 20 mm / 0.79 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752304

EL2 elastic-locking reference - 20 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 110 mm / 4.33 in
Compressed: 90 mm / 3.54 in
Stroke: 20 mm / 0.79 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752294

EL1 elastic-locking reference - 30 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 130 mm / 5.12 in
Compressed: 100 mm / 3.94 in
Stroke: 30 mm / 1.18 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752305

EL2 elastic-locking reference - 30 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 130 mm / 5.12 in
Compressed: 100 mm / 3.94 in
Stroke: 30 mm / 1.18 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752295

EL1 elastic-locking reference - 40 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 150 mm / 5.91 in
Compressed: 110 mm / 4.33 in
Stroke: 40 mm / 1.57 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752306

EL2 elastic-locking reference - 40 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 150 mm / 5.91 in
Compressed: 110 mm / 4.33 in
Stroke: 40 mm / 1.57 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752296

EL1 elastic-locking reference - 60 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 190 mm / 7.48 in
Compressed: 130 mm / 5.12 in
Stroke: 60 mm / 2.36 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752307

EL2 elastic-locking reference - 60 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 190 mm / 7.48 in
Compressed: 130 mm / 5.12 in
Stroke: 60 mm / 2.36 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752297

EL1 elastic-locking reference - 80 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 230 mm / 9.06 in
Compressed: 150 mm / 5.91 in
Stroke: 80 mm / 3.15 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752308

EL2 elastic-locking reference - 80 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 230 mm / 9.06 in
Compressed: 150 mm / 5.91 in
Stroke: 80 mm / 3.15 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752298

EL1 elastic-locking reference - 100 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 270 mm / 10.63 in
Compressed: 170 mm / 6.69 in
Stroke: 100 mm / 3.94 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752309

EL2 elastic-locking reference - 100 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 270 mm / 10.63 in
Compressed: 170 mm / 6.69 in
Stroke: 100 mm / 3.94 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752299

EL1 elastic-locking reference - 120 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 310 mm / 12.20 in
Compressed: 190 mm / 7.48 in
Stroke: 120 mm / 4.72 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752310

EL2 elastic-locking reference - 120 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 310 mm / 12.20 in
Compressed: 190 mm / 7.48 in
Stroke: 120 mm / 4.72 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752300

EL1 elastic-locking reference - 160 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 390 mm / 15.35 in
Compressed: 230 mm / 9.06 in
Stroke: 160 mm / 6.30 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752311

EL2 elastic-locking reference - 160 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 390 mm / 15.35 in
Compressed: 230 mm / 9.06 in
Stroke: 160 mm / 6.30 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752301

EL1 elastic-locking reference - 200 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 470 mm / 18.50 in
Compressed: 270 mm / 10.63 in
Stroke: 200 mm / 7.87 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752312

EL2 elastic-locking reference - 200 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 470 mm / 18.50 in
Compressed: 270 mm / 10.63 in
Stroke: 200 mm / 7.87 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752302

EL1 elastic-locking reference - 250 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 590 mm / 23.23 in
Compressed: 340 mm / 13.39 in
Stroke: 250 mm / 9.84 in
Selectable force: 200–800 N / 45.0–179.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 22 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
Cross-reference: SUSPA 02752313

EL2 elastic-locking reference - 250 mm stroke

Backrest / armrest adjustment

Backrest and armrest adjustment reference. Select the force, end fittings and release system, then match the exact seating mechanism and mounting geometry.

Reference specifications

Drawing length L: 590 mm / 23.23 in
Compressed: 340 mm / 13.39 in
Stroke: 250 mm / 9.84 in
Selectable force: 200–1000 N / 45.0–224.8 lbf
Force selection and mounting interfaces are confirmed for the quoted assembly.
Tube / rod diameter: 28 / 10 mm
Manufacturer's standard-range drawing (extended / compressed length); confirm final mounting centers with the selected fittings
Tube-side attachment and rod-side release head selected separately
Force selection increments: 50 N / 11.2 lbf.

Quote this reference →
B2B COMPONENT SUPPLY

A defined component for production and replacement orders.

Your quotation identifies the gas-spring component, selected connections, quantity and packaging requirements. Use the same agreed specification when reordering.

Request a quotation
